Fully Automatic 304-Stainless Steel Dead Pig Trolley

Product Specifications

- Platform material: Thickened 304 stainless steel

- Net weight: Approx. 170 kg

- Max. load capacity: Approx. 500 kg

- Tyres: Pneumatic wear‑resistant silent tyres

- Power supply: 48 V storage battery

- Core functions: Electric driving, hydraulic lifting, platform rotation, electric winch pulling

Transporting dead livestock has long been a labor-intensive, unhygienic challenge for large-scale pig farms. Designed specifically for the livestock-farming industry, this fully-automatic dead pig trolley integrates four major functions: electric driving, hydraulic lifting, platform rotation and electric winch pulling. It greatly reduces manual workload and makes transportation more efficient, sanitary and safer.

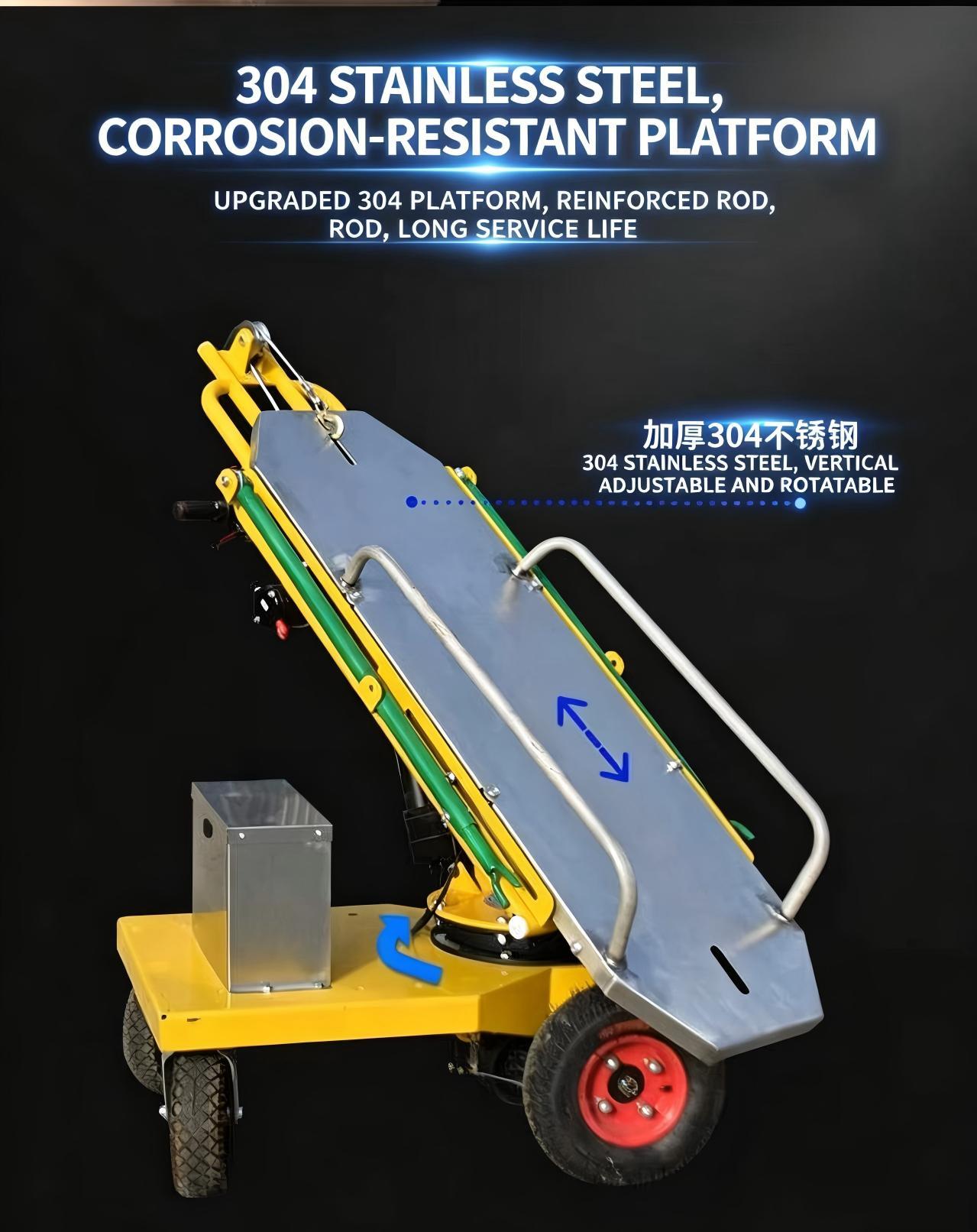

The loading platform is built of thickened 304 stainless steel, which is acid-and alkali-resistant and anti-corrosive. It is easy to rinse and disinfect and resists rust, well-suited to the damp, manure‑rich environment on farms. The stainless-steel platform can slide back and forth and is fitted with guard handrails for stable transport and easy cleaning and maintenance, extending the service life of the equipment. The frame is welded from reinforced section steel for outstanding structural stability. Trolley weighing around 170 kg, the trolley can safely carry loads up to 500 kg and easily handle heavy pigs.

Its biggest advantage lies in the full-electric automatic design: lifting, pulling, driving and rotation are all electrically controlled, doing away with clumsy fully-manual pushing and hauling.

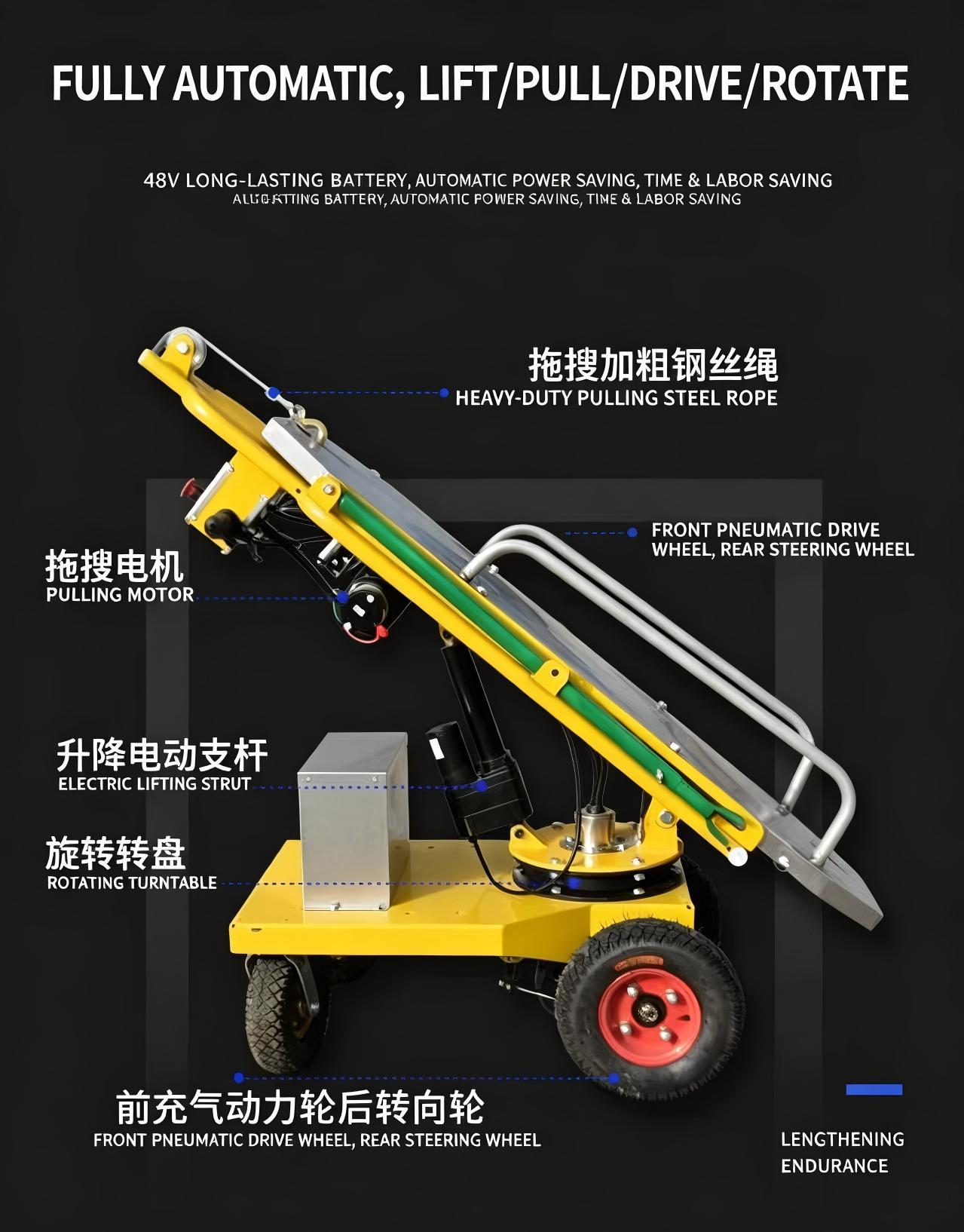

- ✅ Electric winch pulling: The heavy‑duty winch motor with thickened steel wire rope pulls livestock onto the stainless‑steel platform without heavy manual lifting, protecting operators’ waists and cutting physical effort.

- ✅ Electric hydraulic lifting strut: One‑button control raises or levels the platform for easy loading and unloading.

- ✅ 360‑° rotating base: The platform can swivel on the spot. It turns easily in narrow pig‑house aisles or beside loading ramps without repositioning the whole trolley.

- ✅ 48 V large‑capacity battery for long‑lasting power, enough for a full day of continuous operation.

- ✅ Pneumatic silent tyres with front‑wheel drive and rear‑wheel steering. It runs smoothly on bumpy muddy ground and concrete aisles and is unlikely to get stuck in mud.

The control panel is clearly laid out and user -friendly even for new operators. It includes switches for the winch, platform lifting and platform rotation, a battery‑level indicator, forward‑reverse speed‑control knob, brake lever and a prominent red emergency‑stop button to cut power instantly in an emergency and safeguard operators. All electric components are protected against moisture and dust to withstand harsh farm conditions.

Manual lifting and hauling in the old way requires many workers, causes fatigue and injury risks, wastes time and undermines biosecurity. With this fully-automatic dead‑pig trolley, one worker can finish work that once needed two or three people. It saves time and labour, cuts labour costs and reduces direct contact between staff and dead animals, improving on‑farm biosecurity. It is a highly practical auxiliary machine for large‑scale pig farms, farming communities and waste‑treatment collection points.

Good equipment helps farms lower costs and boost efficiency. Robust, durable and easy‑to‑operate, this fully‑automatic 304‑stainless‑steel dead‑pig trolley takes over heavy‑duty transport work and makes farming easier!
